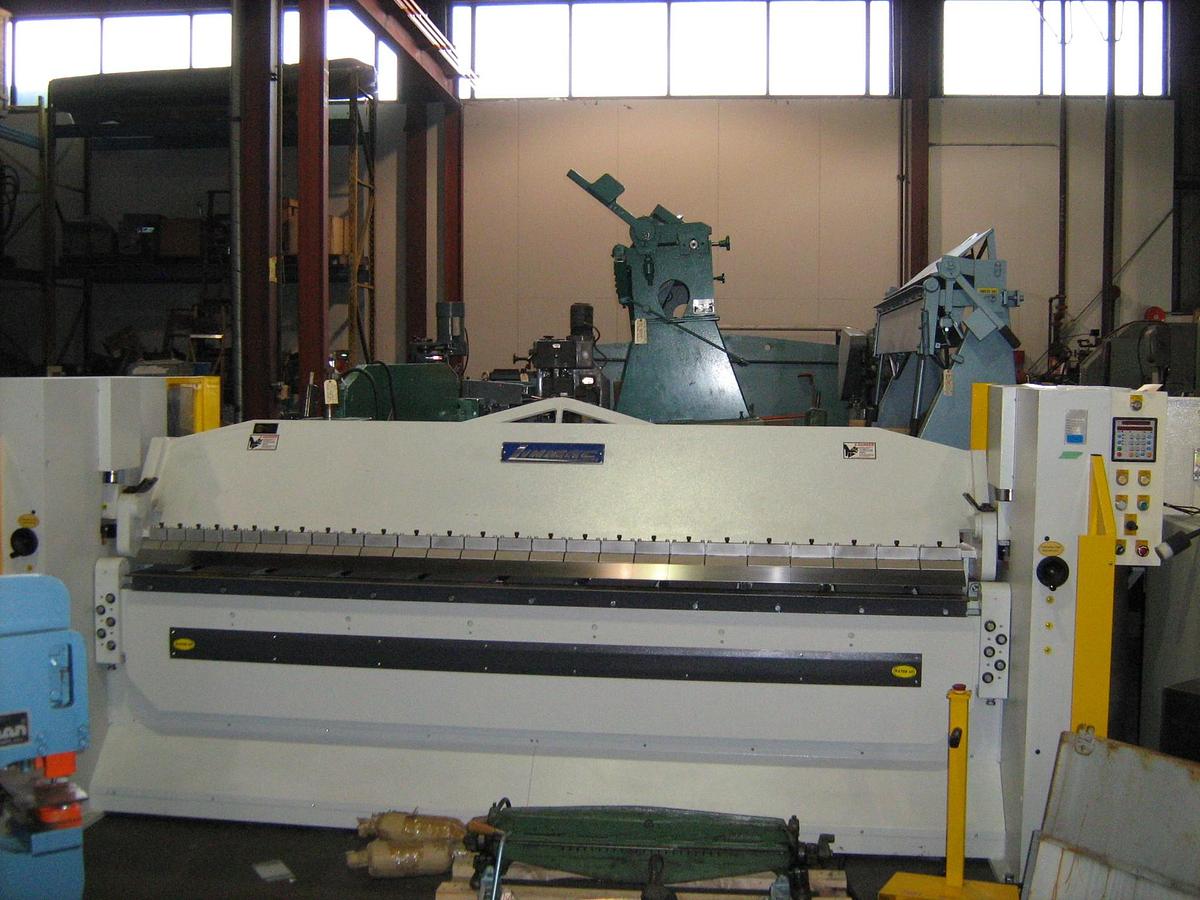

“NEW” MODERN MODEL #VH-1014-6 NC HYDRAULIC STREIGHT BRAKE

SPECIFICATIONS:

· Bending Capacities:

- Bending Length                    3048 mm / 120”

- Mild Steel                             2.0 mm (14 ga)

- Stainless Steel                      1.2 mm (18 ga)

·       Bending Angle:                             0 – 135°

·       Beam Adjustment:                       25 mm (1”)

·       Min Reverse Bend:                       20 mm (13/16”)

·       Motor (HP):                                   3 HP 220/440/575 Volt 3 phase (Please specify)

·       Packing Size:                                 3900 x 1150 x 1670 mm/154”x 46”x 66”

·       Packing Weight:                            2650 kgs/5,830 lbs

·       Hydraulic Clamping

·       Standard Finger Assortment, Width and NR. of fingers

- 76 mm / 3”                                  6

- 101 mm / 4”                                4

- 127 mm / 5”                                10

- 152 mm / 6”                                6

Total                                             26
