NEW BRAVO MODEL 6018 RECTANGULAR DUCT LINE

Benefits

• Fast Payback. lf you produce 150,000 lbs. of duct or more in a year, you can expect the savings in material and labor costs to pay for this machine in 10 months or less.
• Accuracy. Everything is automatic and precise; servomotor and encoder are better than just using measuring tape.
• Always ready. The Bravo 6018 Rect Duct Une beats you to work, does not take lunch or breaks.
• Material Savings. Most users save between 18 and 24% on scrap and as much as 20% with coils.
•  Labor savings = payroll savings. Make duct in a fraction of the time when produced by hand.

Features included

• Uncoiling: One carriage with two 11,000 lb. x 60″ wide payoff reels, with expandrels
• Touch Screen CNC Controlled
• Automatically Feeds off the Coil

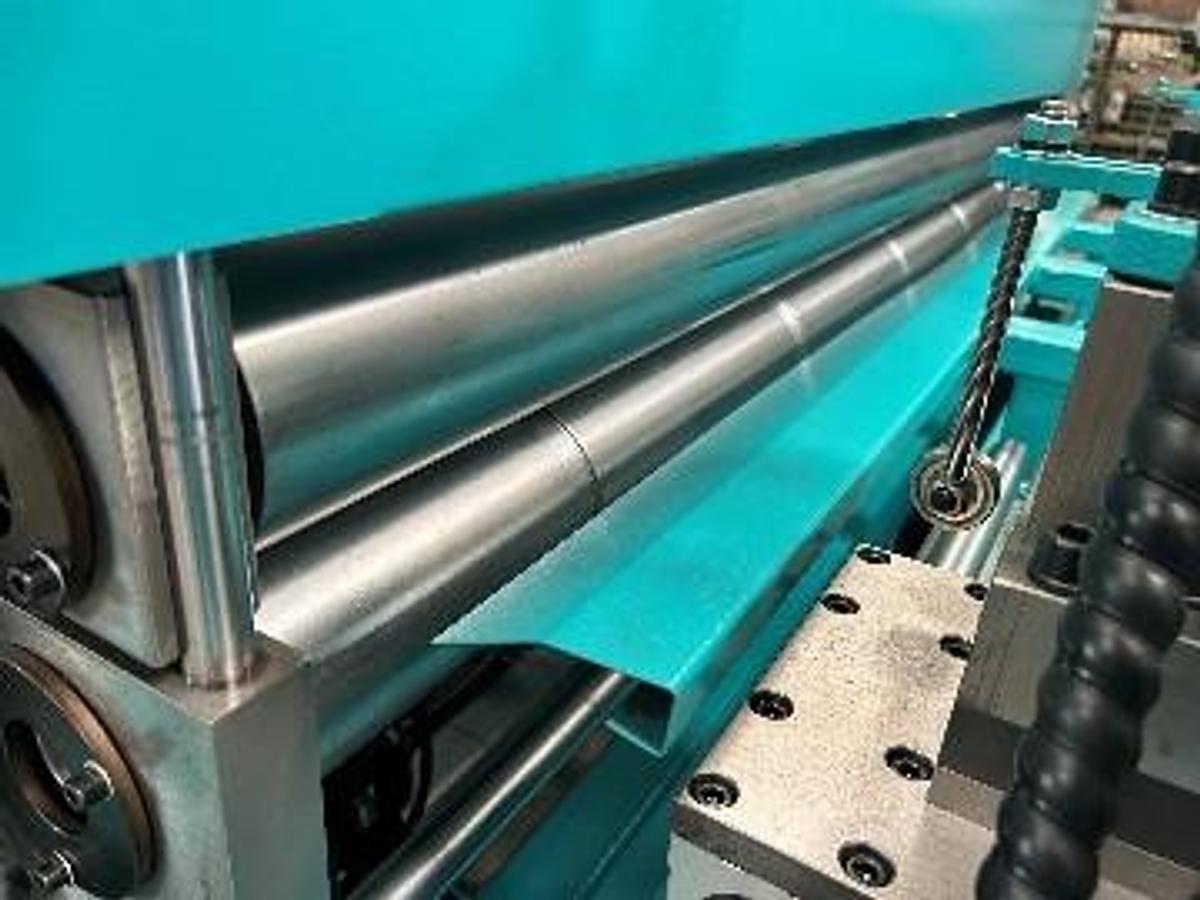

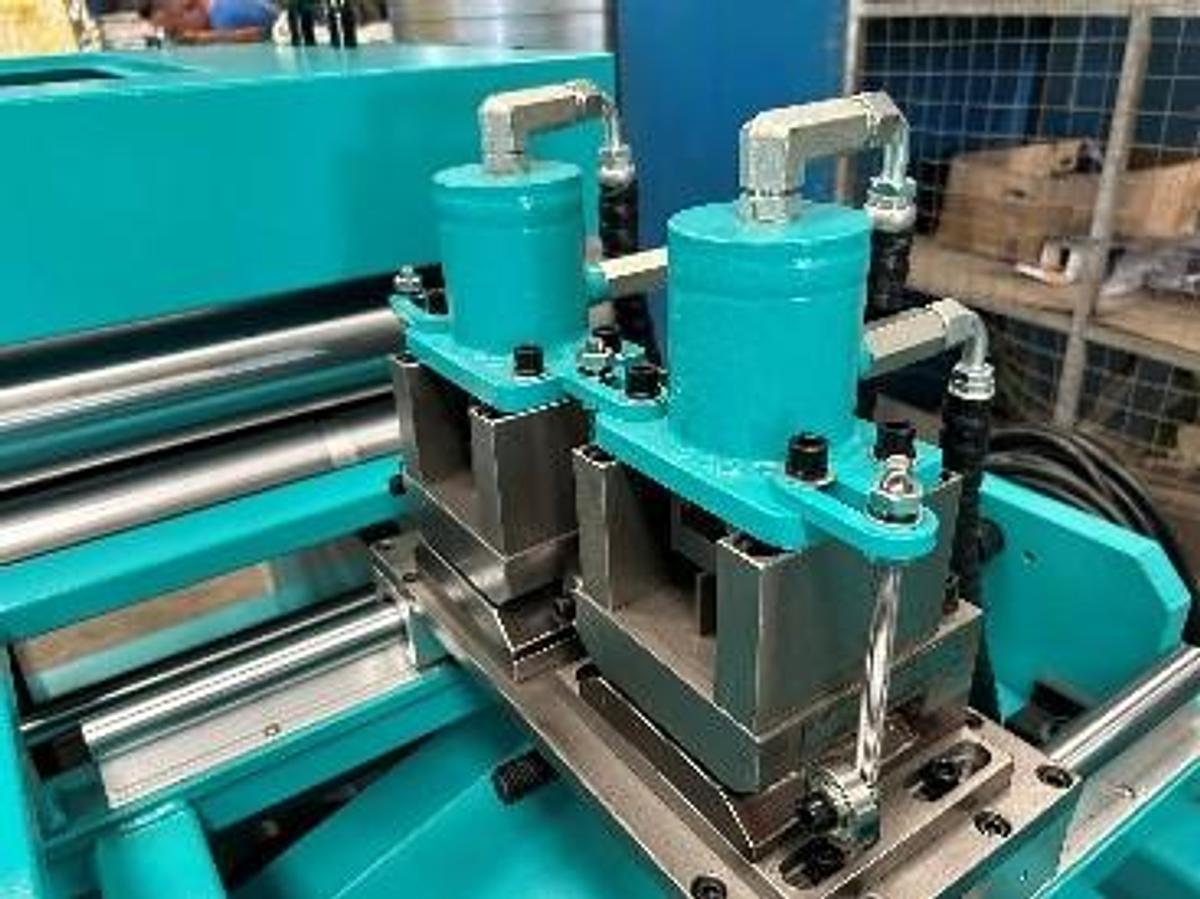

• Straightens, Beads, Notches (S&Drive, TDC and TDF)
• Shears and Brakes to Half Sections or Full Wrapper Duct

Specifications

• Capacity: 60″ x 18 Gauge Galvanized
• Electrics: 11.5 KW, 220/3/60 (Standard)
• Max duct length: 13′
• Footprint with 4 reels: 7′ x 32′
• Machine weight with 4 reels: 13,200
• Max Coil Weight: 11,000#
• Max Coil Width: 60″
• Min duct width: 8″
• Max Thickness of Metal: 18-gauge mild steel
• Line Speed: Approx. 0-30 fpm

Major components included

(all well known, respected and available anywhere in the world)

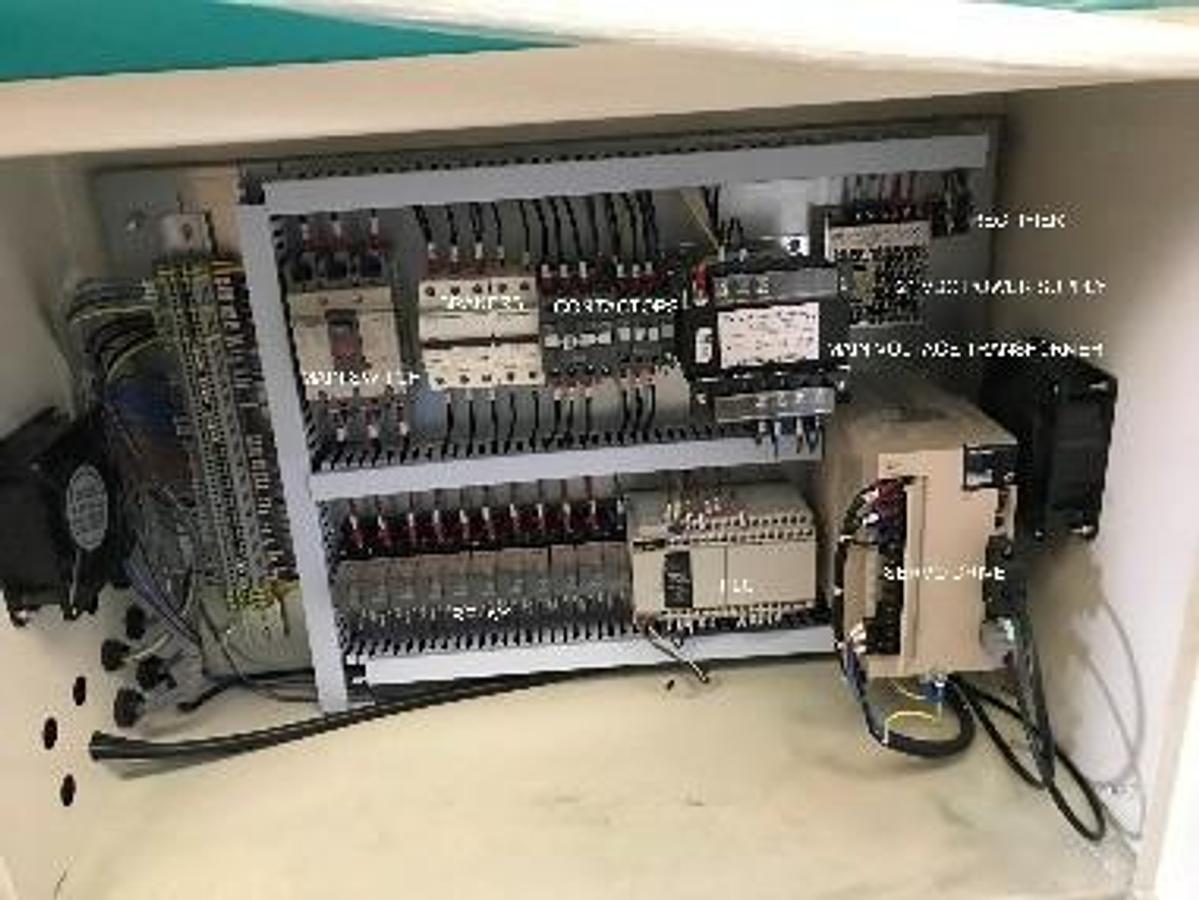

• PLC: Panasonic
• Electrics: Schneider or Siemens
• Rotary Encoder: Nemicon (Japanese)
• Bearings: Torrington, SKF or Koyo

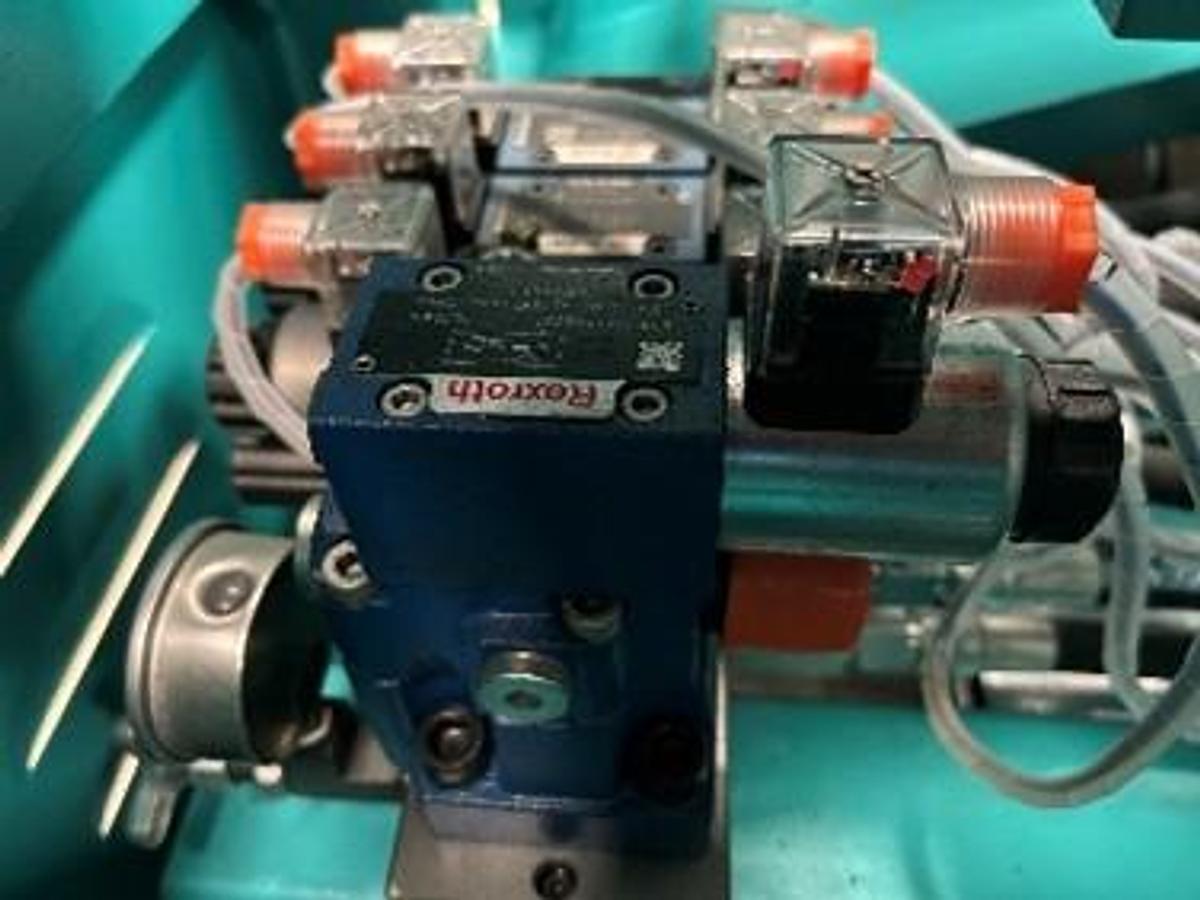

• Hydraulics:Rexroth
• Servo motor: Yaskawa
• Touch Screen: Weilun
