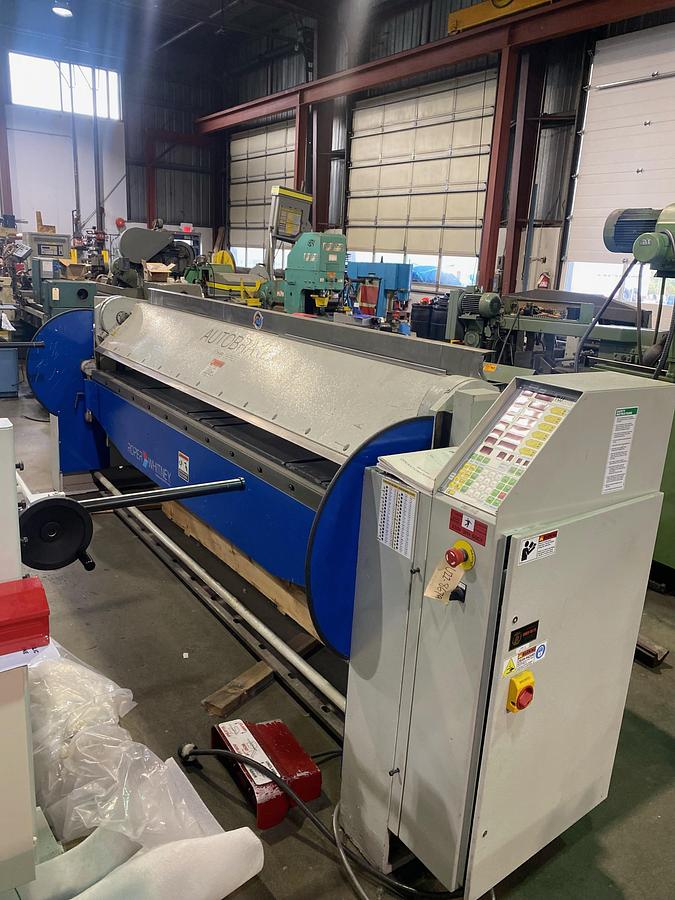

ONLY “USED” ROPER WHITNEY MODEL AB1014K FOLDING MACHINE

Kombi Beam Tooling

The upper beam comes standard with both segmented and sharp rail tooling.  The segmented box tooling can form boxes with a maximum depth of 4.0”. The sharp rail tooling is machined to 30°.

SPECIFICATIONS:

Bending Capacity (Mild Steel) 14ga / 2,0mm

Bending Capacity (Stainless) 16ga / 1,5mm  up to 90°, 18ga / 1,2mm past 90°

Bending Length 122 in / 3100mm

Bending Bars .787" (20mm) bending bar x 122" (3100mm)

.394" (10mm) bending bar x 122" (3100mm)

.275” (7mm) bending bar x 122" (3100mm)

Back Gauge Motor 3/4 hp Servo / 0.6 kw Servo

Clamping Beam Motor 2 hp / 1.5 kw

Clamping Beam Rotation Motor 2 hp / 0.75 kw 230 VOLT 3PH

Bending Beam Motor 2 hp / 1.5 kw

Machine Weight 6,600 lbs. / 3886 kg

Machine Dimensions 160 x 90 x 84 in / 4064 x 2286 x 2134 mm

Speed

Clamping Beam Speed 2.5” per second

Folding Beam Speed 70 degrees per second

Back gauge Speed(0.250” to 61”) 2 seconds
