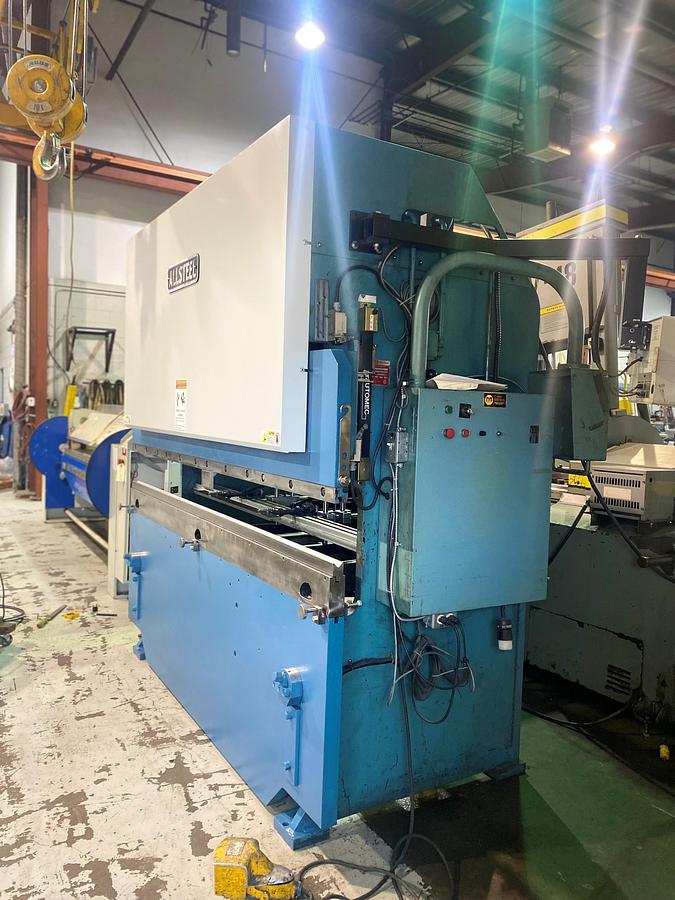

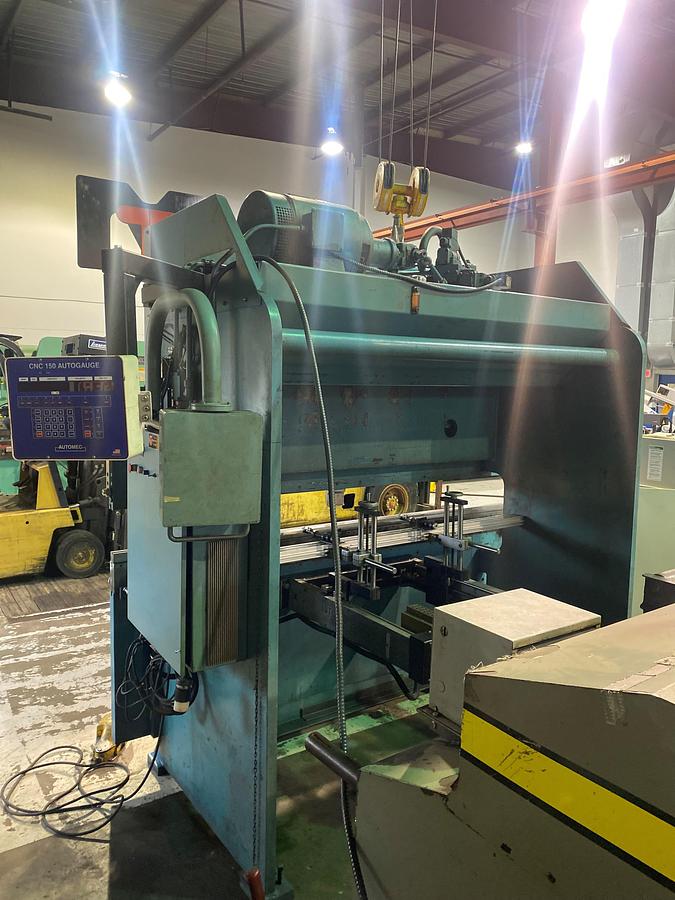

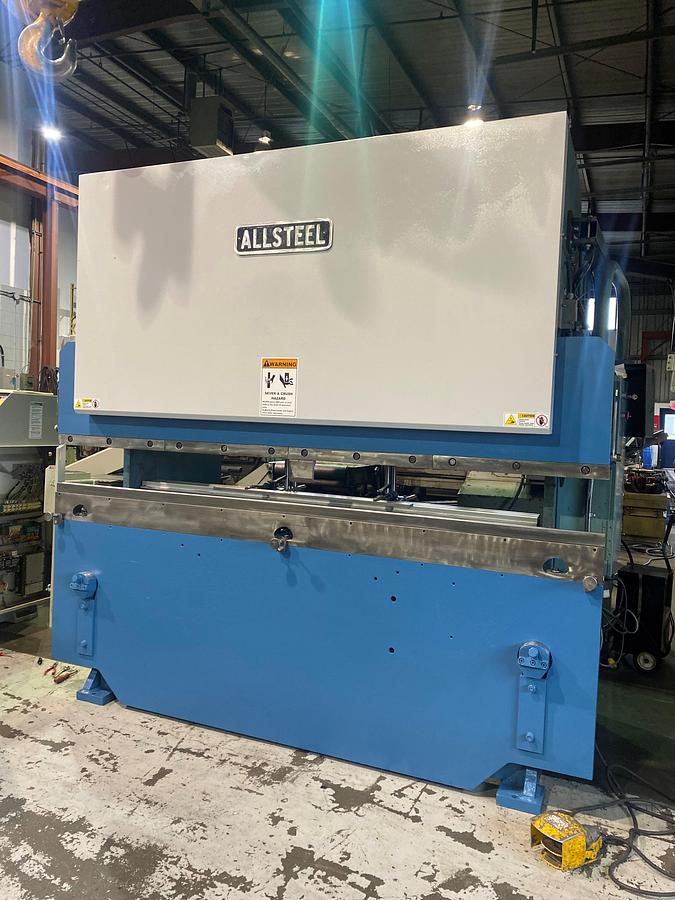

(1) ONLY “USED” ALLSTEEL MODEL 45-8 HYDRAULIC PRESS BRAKE

STANDARD FEATURES:

• ALLSTEEL machines are furnished with complete electrics, motor, overload protected motor starter and foot switch remote control or palm button station.
• Die rail with groove, die retainer screws, sectional spring open die clamps and hardened clamping bolts.
• Limit switches with micrometer bottoming adjustment.
• Infinitely variable pressing speed.
• Complete overload protection:  no jamming or damage caused by bottoming.
• OFF/SET/JOG/RUN/SINGLE/ mode selector switch.
• Die rail centering clamp blocks.
• Extra-long ram guides with adjustment screws for back to front and left to right adjustments, increases accuracy and machine life.
• Hardened and ground ways.
• Ram guides lined with a non-metallic oil impregnated material:  providing long lasting score proof sliding surfaces.
• Bed Tilt adjustment.

SPECIFICATIONS:

·     45 Ton

·     8’ Overall Bending Length

·     15” open height

·     7.5HP  550 Volt / 3 Ph Electrics; 78” Between Housings/ Frame

·     96”x 94”x 50” wide

·     8,500 approx.  Shipping wt.
