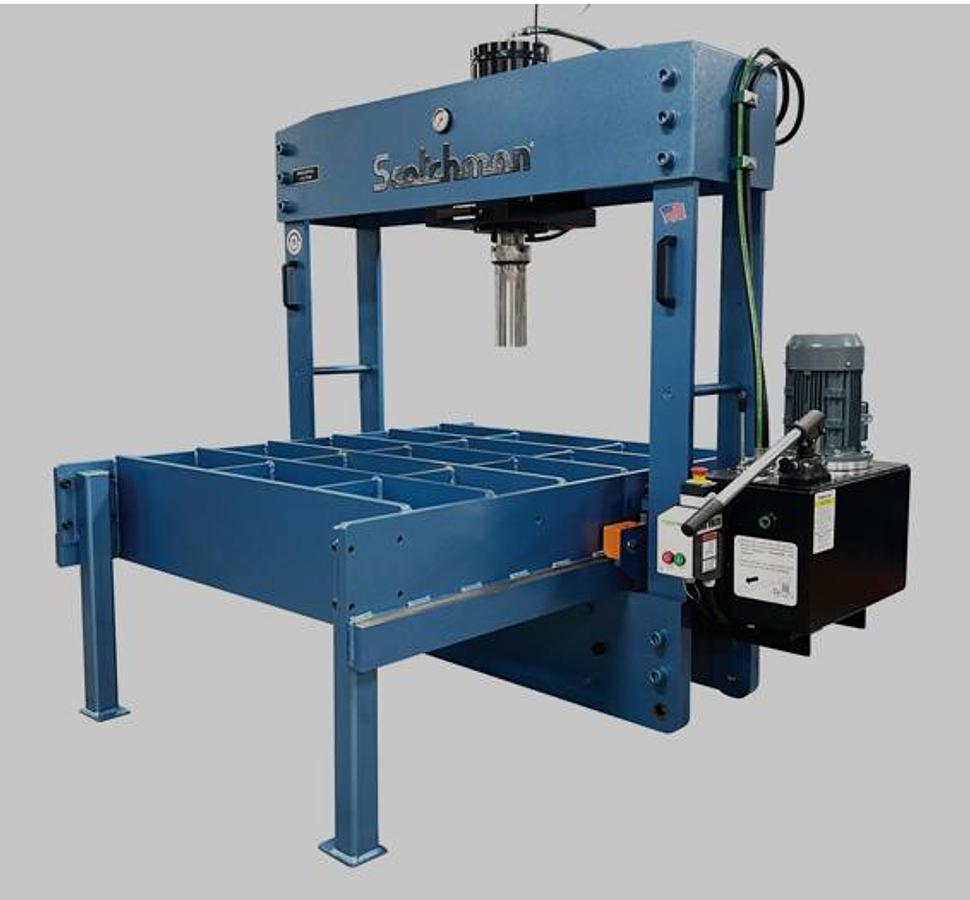

NEW SCOTCHMAN 110-TON WIDE-FRAME 110W MT HYDRAULIC STRAIGHTENING PRESS PRO

The 110W MT is a 110-ton wide-frame hydraulic press featuring a movable press frame that allows for easy overhead loading of heavy workpieces. It’s ideal for straightening large sheets, beams, and structural components.

The ram head slides smoothly from side to side, while the wide press frame moves forward and backward giving you full access to every area of the work surface. Thanks to its combination of a movable frame and cylinder design, you can easily reach every point of the surface that needs pressing. Both the ram cylinder and the press frame are manually operated for simple, precise control.

Standard Features

• Close High-quality hydraulic system with pressure regulator
•  Two-speed hydraulic operation
•  Joystick + hand-pump controls for precision pressing
•  54-1/2" L × 51" W worktable
• Meets CE Standards
•  Made in the USA
• Backed by Scotchman’s 3-year warranty

Capacities & Specs

Close Press Force110 tons

Motor Options(must specify) 230/460v 3.5 hp

Ram Speed - Approach 18 ipm

Ram Speed - Press 6 ipm

Ram Speed - Return 21 ipm

Open Height (min.) -

Open Height (max.) 23.65"

Stroke 15"

Lateral Ram Slide YES

Width Between Uprights 59"

Width Between Table Channels 9 3/8"

Table Height Fixed at 30”,

Table Size (L x W): 54 ½ x 51 ,

Frame Movement : 38 ½”

Footprint(L x W) 82 ½” x 68 ½”

Height Overall 78 ½”

Approx. Weight (including V-blocks) 4541 lbs.
