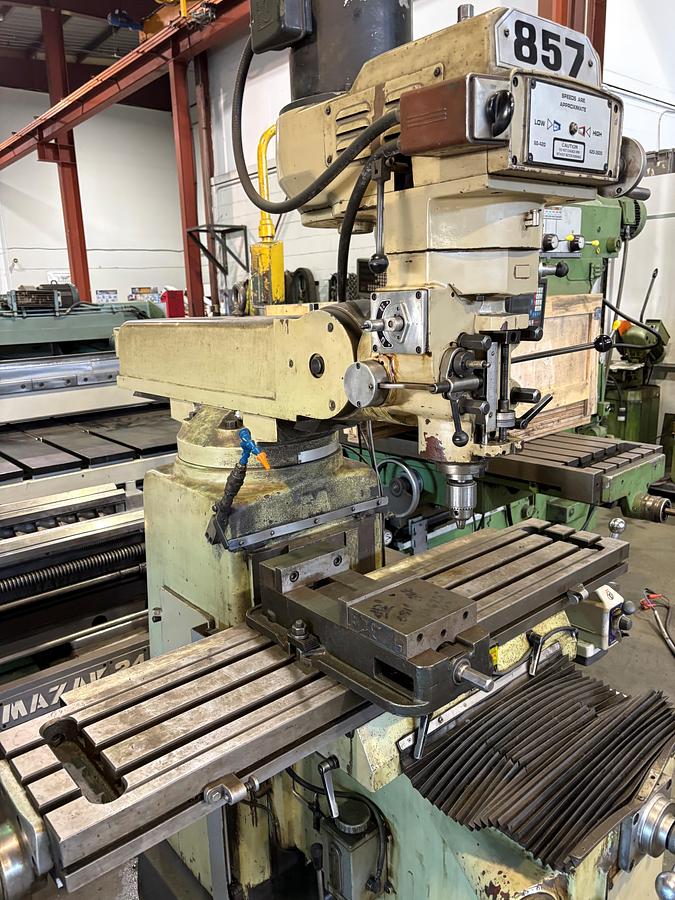

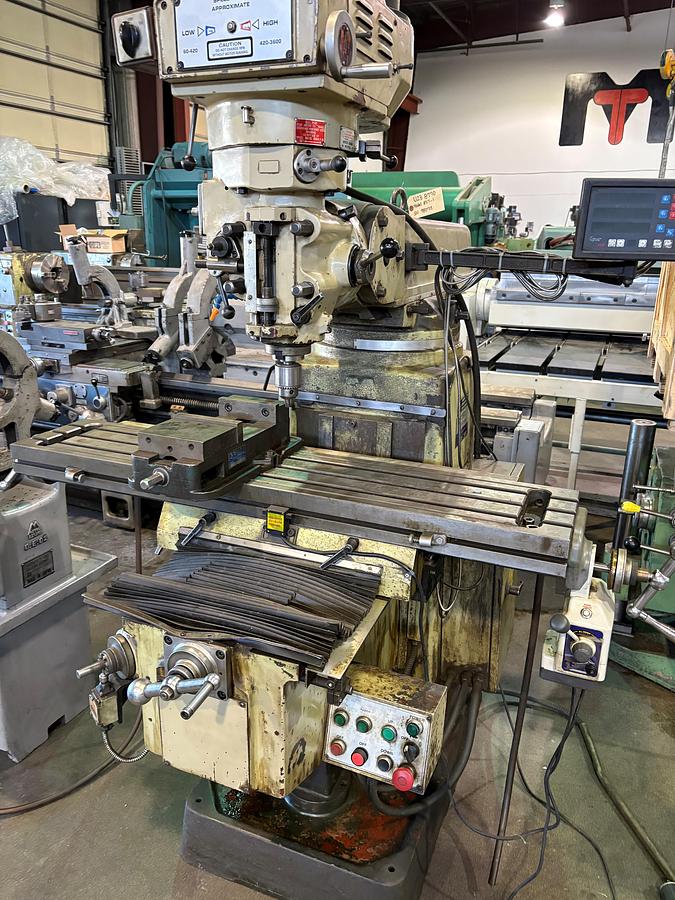

“ONLY” USED MODERN MODEL 857-II VERTICAL CNC MILLING MACHINE WITH FAGOR 8055 II PLUS 11”LCD CONTROL

SPECIFICATIONS:

• Table                                                                                                       12" x 54"
• Motor                                                                                                     5 HP 220/440 3PH
• Infinitely Variable Speeds                                                                      70 - 3600 RPM
• Spindle Taper                                                                                          #40
• Quill Diameter                                                                                         4-1/8
• Quill Travel                                                                                              5"
• Longitudinal Table Travel                                                                       36"
• Cross Table Travel                                                                                   16"
• Vertical Table Travel                                                                               16"
• Maximum Work Load                                                                              1,100 Lbs.
• Weight                                                                                                     3,520 Lbs.

COMPLETE WITH:

• Ball Screws for X and Y Axis
• Longitudinal Power Feed
• Hardened & Ground Ways
• Lined with Turcite B
• Hardened & Ground Table Surface
• Heavy Duty Boxways
• Electric Oiler
• Coolant System
• Chip Tray
• Splash Guard
• 3 axis Topaz DRO
