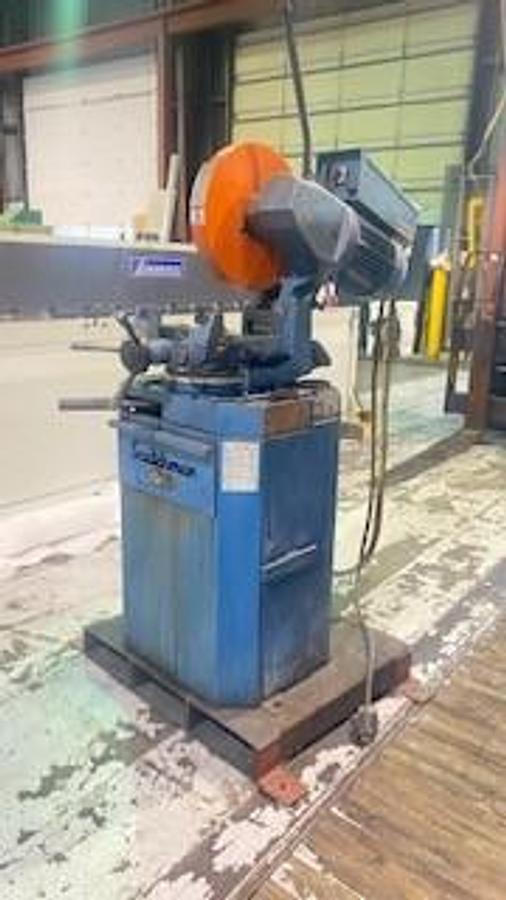

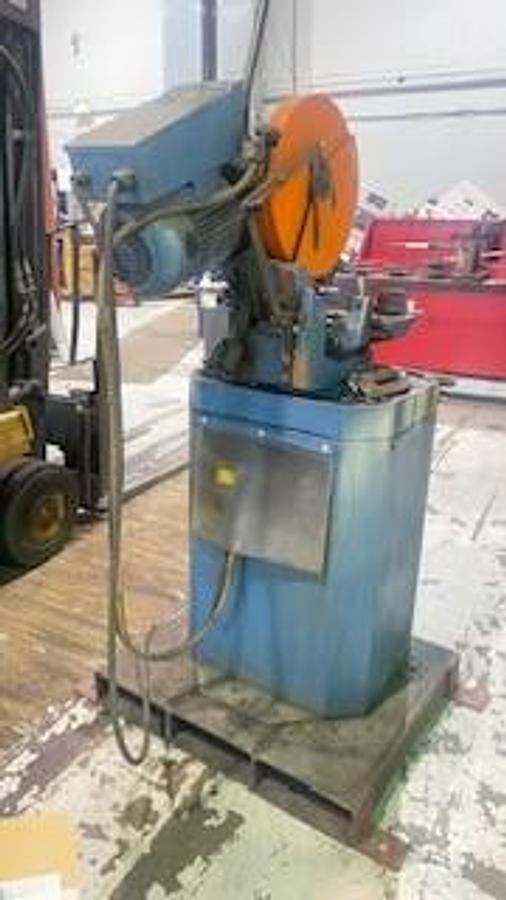

USED SCOTCHMAN MODEL CPO 350LT COLD CUT SAW 230V 3/2.5HP 60HZ

SPECIFICATIONS:

·     Non-Ferrous machines designed for aluminum, plastic, copper, etc.

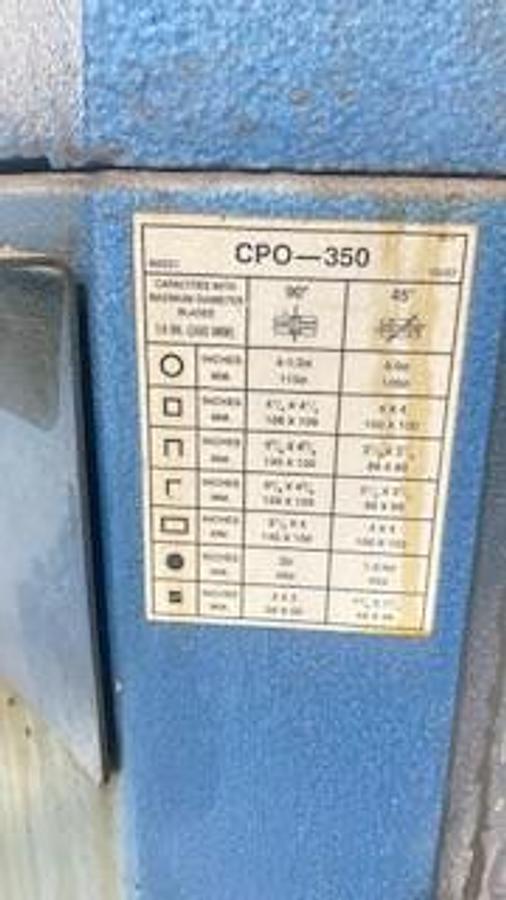

·     Round Tubing:              90° = 4-1/2"             & 45° = 4-"

·     Round Solid:                 90° = 2"                  & 45° =1-3/4"

·     Square Tubing:            90° = 4-1/4"x4-1/4"  & 45° = 4"x4"

·     Square Solid:                90° = 2"x2"              & 45° = 1-3/4"x1-3/4"

·     Rectangle Tubing:         90° = 5-1/2"x4"        & 45° = 4"x4"

·     Cutting Speeds:            22/44 rpm

·     Motor rate:                    2 hp

·     Factory wired:               Specify 230 V/3Ph, 460 V/3Ph

·     Max. Diameter Blade:    14” (350 mm)

·     Arbor Bore:                   1-9/16” (40 mm)

·     Pin Spacing:                 4/12/64

·     Width:                           21-7/8”

·     Depth:                          43-1/2”

·     Height:                          56-1/4” (not incl. feed handle)

·     Weight:                         675 lbs
