“USED” MVD A 02 3060 Mechanical Guillotine Shear

“USED” MVD A 02 3060 Mechanical Guillotine Shear

or
Call (604) 472-1444

Description

  • Rigid welded monoblock frame
  • Front support arms with scale, T channels and flip stops
  • NC controlled 750mm travel back gauge

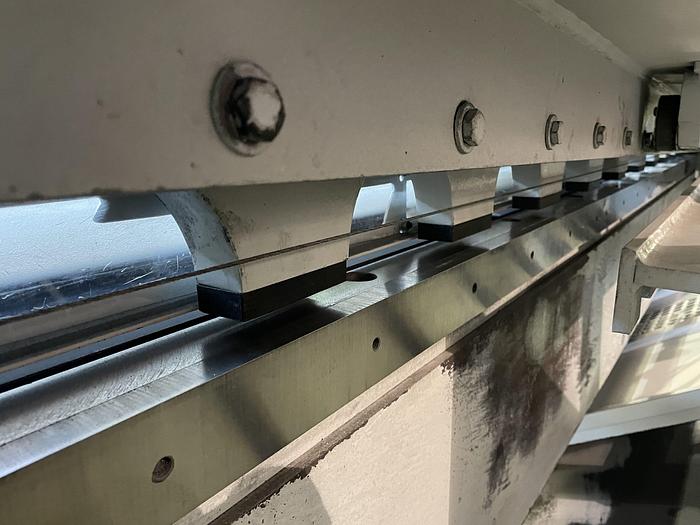

  • 2 upper blade edges, 4 lower blade edges

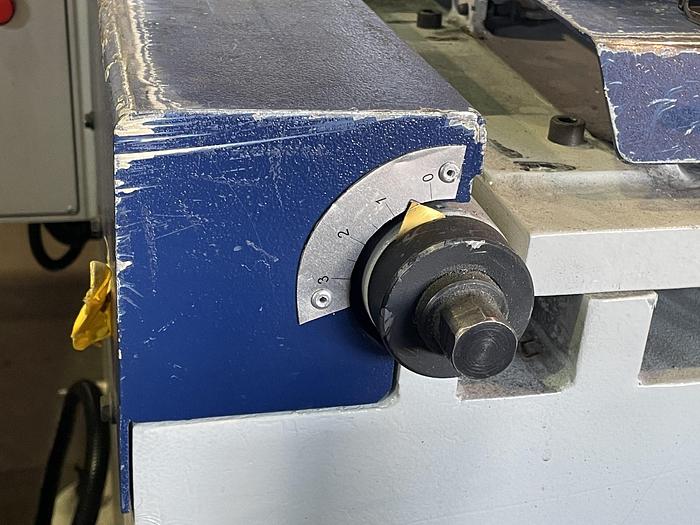

  • Adjustable blade gap
  • Front support arms and table rollers

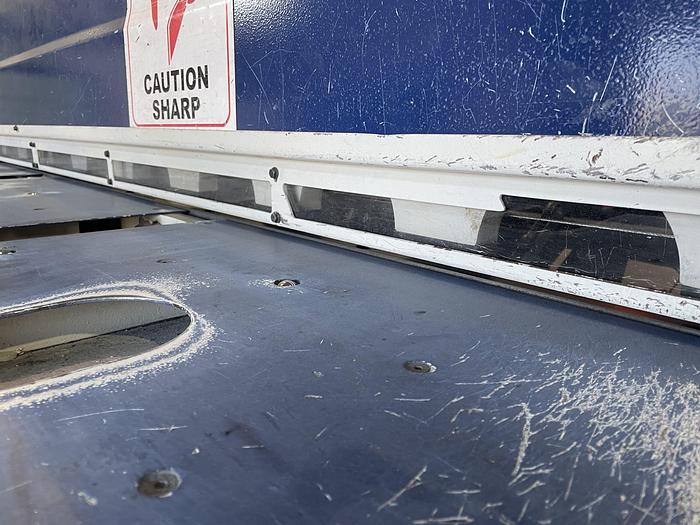

  • Finger protection guard
  • Mechanical sheet hold down

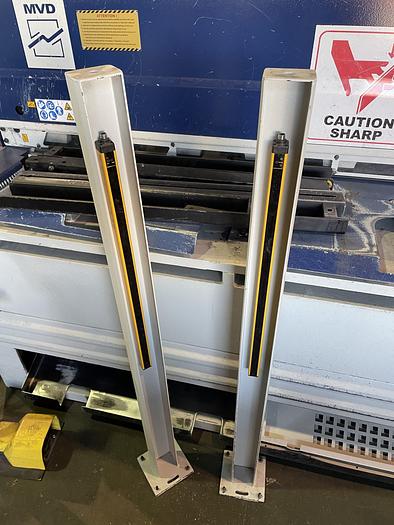

  • Rear safety light curtain
  • Shadow, illuminated cutting line
  • Back side protection covers
  • Cut counter

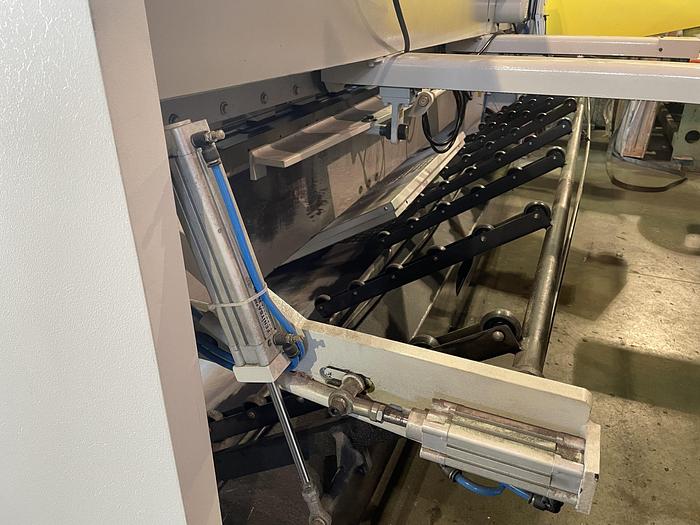

  • Pneumatic sheet support and sliding system
  • Front sheet return

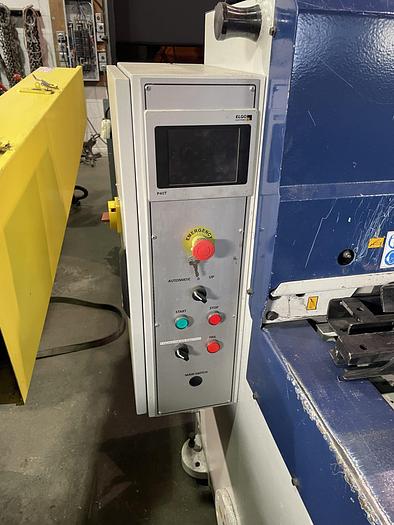

    • CONTROL CONSOLE:

  • Elgo P40T touch screen NC control unit
  • Foot switch control
  • Light safety curtain
  • Series 1901004
  • 220 Volt, 3 phase
    • Show All

    Specifications

    ModelA 02-3060
    Year2019
    ConditionUsed
    Cutting angle1°30′
    Max current28 amps
    Power8 KW/10.73HP
    Max cutting length3060mm/10′
    Max thickness2mm/0.079″
    Weight4000kg/8,800 lbs
    Hold downs13
    Cuts per minute41
    Table height800mm
