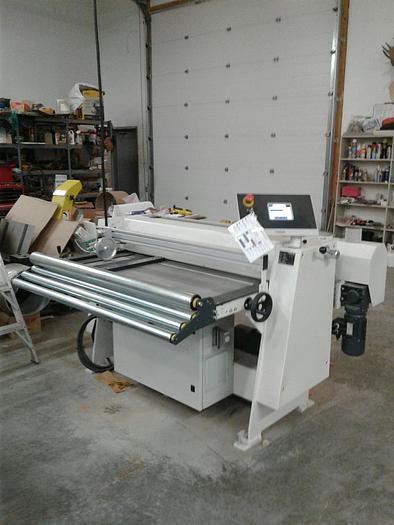

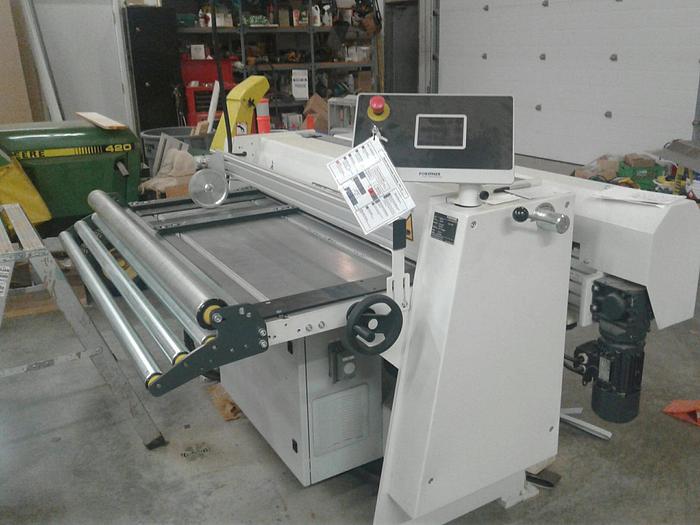

“USED” FORSTNER MODEL MST-AL 1250 CUT TO LENGTH SLITTING LINE

DECOILER

SLITTER MST: slitting shafts Ø100mm (4″), 5 pairs of manually adjustable steel knives, manual knife overlapping and manual knife gap adjustment

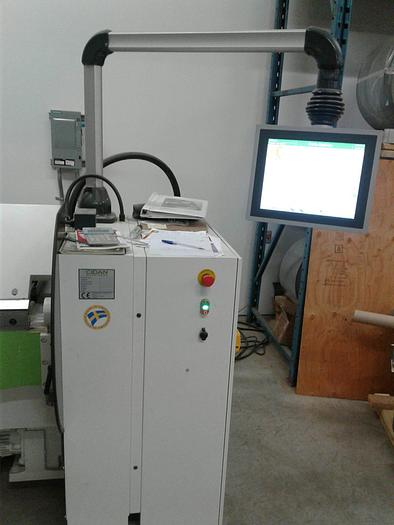

CONTROL SPS-S1 POTI: easy operation with ergonomic touch panel, variable speed adjustment with a potentiometer, single or multiple programs

This combination of traditional Forstner machines perfected over the years has become a classic in the sheet metal-working industry:

deflection rollers RT

table with manually adjustable coil guidance TI

slitter MST

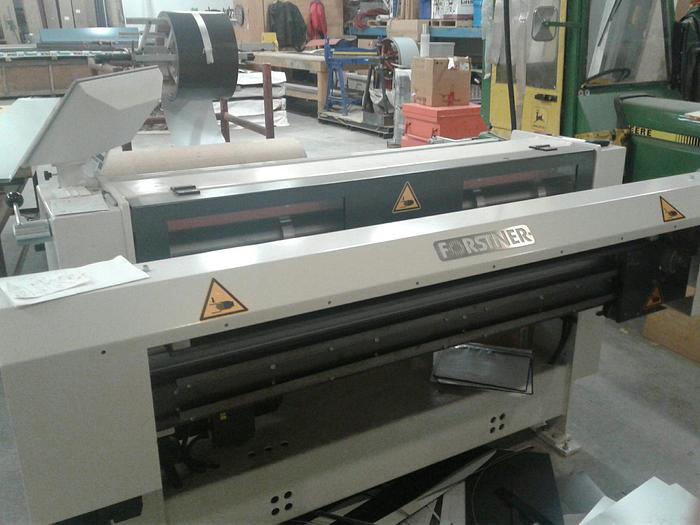

electric cut to length slitter AL e

control SPS-S1 POTI

Other combinations of Forstner slitters, shears and controls are also available. The entire system can be tailored to individual requirements.

A6548 48” X 5000 lb decoiler
No matter which version you choose, the infeed table of the slitting and cut to length line will have one fixed and one adjustable edge guide, allowing coils up to 1270 or 1540 mm width to be handled.
The feed mechanism is strong enough to accommodate sheet from coils up to 2000 kg, even when the decoiler itself is not powered.

lower material cost: The purchase price for large coils is lower than for small coils or sheets.

lower personnel cost: The system is operated by one person. You reduce cutting time considerably.

shortened production time: The handling of all types of materials is substantially rationalized by the use of larger coils.

MST-AL 1250 SPECIFACTIONS
