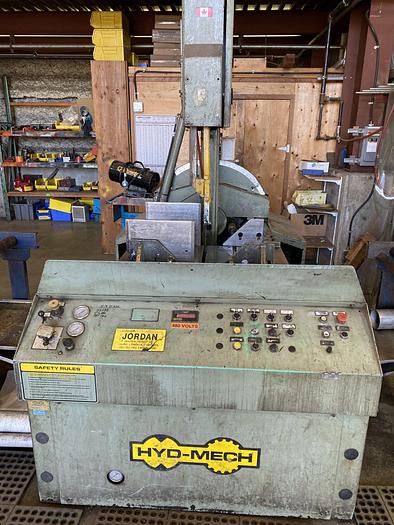

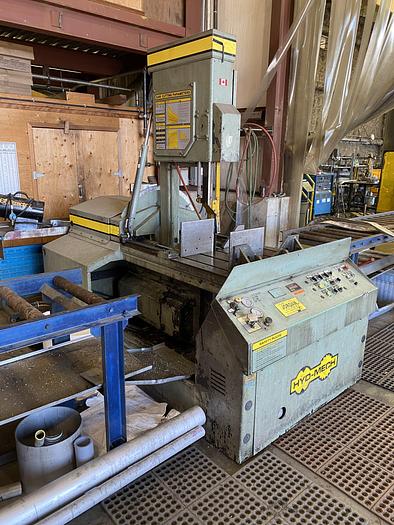

HYDMECH V-18 Semi Automatic Vertical Band Saw

HYDMECH V-18 Semi Automatic Vertical Band Saw

orCall (604) 472-1444

Description

Click to Download Brochure:

The V-18 is a semi-automatic vertical band saw with the ability to miter from 45° left to 45° right.

A 2 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head advance/retract, blade tension, and guide arm movement.

Featuring a 20″ H x 18″ W capacity, 7.5 HP motor, and 1 1/4″ blade, the V-18 is a reliable choice for all your vertical metal cutting applications.

  • 7.5 HP Motor with AC inverter
  • Blade breakage switch
  • Powered blade brush
  • Hydraulic blade tensioning
  • Variable frequency drive
  • Work light
  • Two hydraulic full stroke vises
  • Hydraulic head tilt
  • Flood coolant system
  • Direct down feed providing easy adjustment of both head feed rate and cutting pressure
  • Extended head (Extra 11″ capacity)
  • Laser light
  • Hydraulic band tensioning with digital readout
  • Safety door interlocks
  • Variable vise pressure
  • Round 18″
  • Specifications

    ManufacturerHydmech
    ConditionUsed
    Capacity at 90°Rectangular 18″ x 20″
    Capacity @ 45° left or right13″ Diameter
    Blade size1 1/4″ x 14′ 11″ x 0.42″
    Hp7.5 HP VFD
    OperationSemi-automatic
    Mitering45° left and right
    Dimensions80″ x 120″ x 97″
    Weight4,500 lbs.
    Blade speed65-385 SFM
    Blade wheel19″ diameter
    Coolant tank20 Gallons
