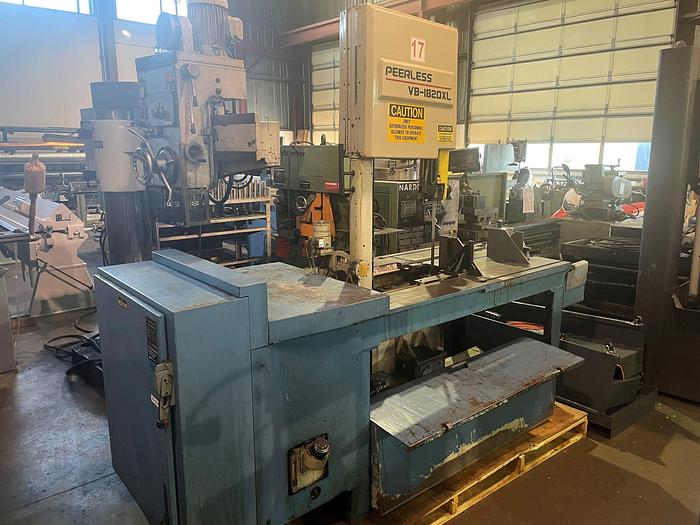

“Used” Peerless VB-1820XL Semi Automatic Vertical Tilt Frame Band Saw

“Used” Peerless VB-1820XL Semi Automatic Vertical Tilt Frame Band Saw

orCall (604) 472-1444

Description

Description: The VB-1820XL is the most versatile, metal cutting vertical tilt frame band saw machine on the market and designed to meet a wide span of applications.  It is a hydraulic, semi-automatic saw on which the saw bow automatically returns after the cut is completed.  This means that the operator need not expend time and energy to hand-crank the machine return as with old-fashioned designs.  It has the capability of miter cutting up to 60 degrees both left and right of center. The base and saw column are made from heavy duty, high strength structural materials to dampen vibration and provide smooth, rapid cuts.

  • 3 HP Motor, 208 volt
  • Blade breakage switch
  • Powered blade brush
  • Hydraulic blade tensioning
  • Variable frequency drive
  • Hydraulic head tilt
  • 1 HP hydraulic oil pump with 5 gallon reservoir
  • Hydraulic band tensioning
  • Variable feed pressure, 0-400 lbs
  • 208v, 3 phase, 60 hz
  • Full load @ 208v = 25.2A
    • Show All

    Specifications

    ConditionUsed
    Capacity @ 90° rectangular18″ x 20″
    Capacity @ 90° round18″
    Capacity @ 45° left or right18″ vertical x 12 1/2″ diameter
    Blade size1″ x 174″ x 0.035″
    OperationSemi-automatic
    Mitering45° left and right
    Dimensions80″ x 120″ x 97″
    Weight2,720 lbs
    Blade speed50-450 SFM
    Blade wheel18″ diameter
    Coolant tank5 Gallons
