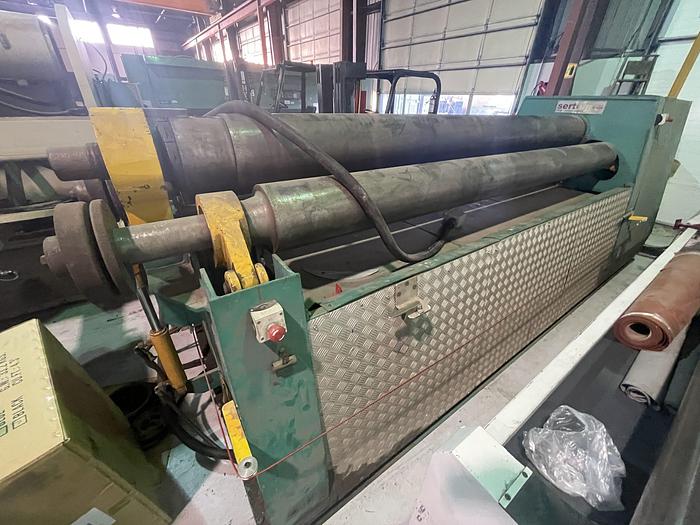

“Used” Sertom RIMI 4RP 10-30 4 Roll Plate Rolls

“Used” Sertom RIMI 4RP 10-30 4 Roll Plate Rolls

orCall (604) 472-1444



  • Both upper roll and central pinch rolls driven by hydraulic motor
  • Yoke type drop end for top toll release, manual, for part removal
  • Lateral bending roll and pinch roll incline for cone working

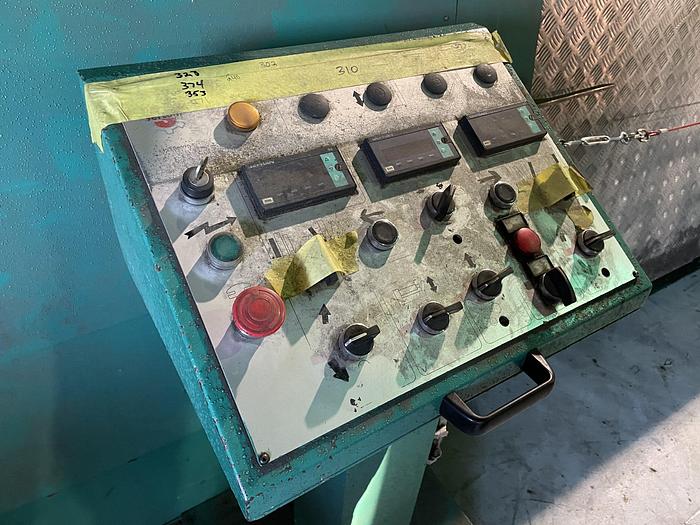

  • Low voltage push button controls via mobile control console

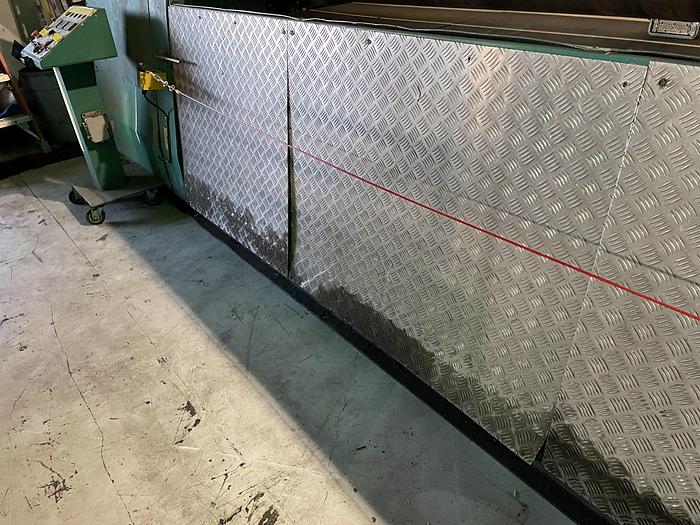

  • Multi point safety system including circumferential trip wire
  • Forced lubrication system
  • BENDING CAPACITIES (* at full roll width)

  • Minimum diameter obtainable with thinner sheets 1.5 times top toll diameter allowing for material spring back – data calculated using certified mild steel yield point of 36,000 psi

  • Induction hardened rolls
  • Hydraulic powered drop end & top roll suspension
  • 3 LED digital readout on control panel
  • 2 speed rotation/feed
  • Profile bending attachment
  • Specifications

    Upper and pinch roll diameters10 3/4″
    Lateral bending roll diameter9″
    Installed power15 HP

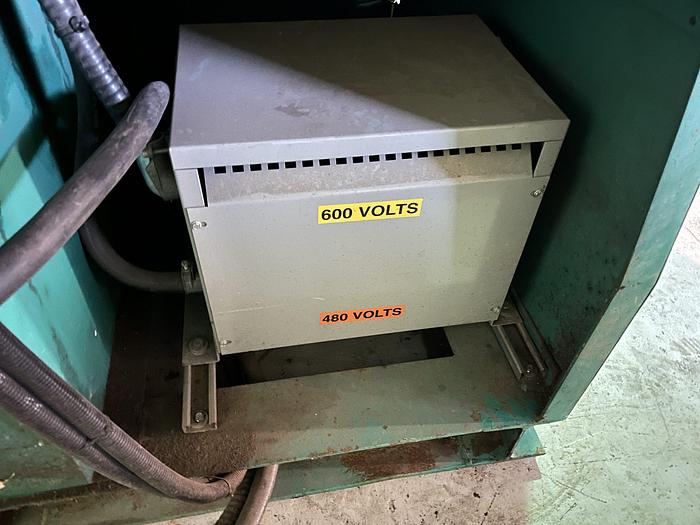

    Wired for3 phase 480 volts 60 hz
    Machine overall length203”
    Machine overall width60”
    Machine overall height69”
    Machine maximum weight22,000 lbs approximate
    Useful length maximum120” + 3/8″
