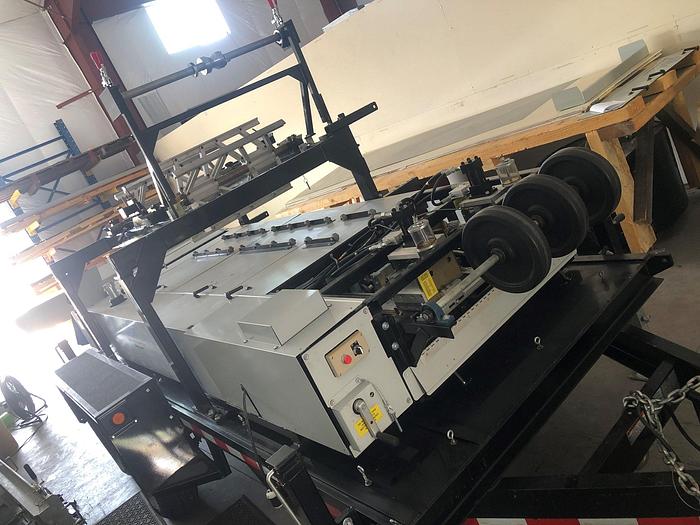

“USED” SSQ™ MultiPro Roof Panel Machine

STANDARD FEATURES:

The most advanced…accurate…user-friendly, multi-profile, roof panel machine ever. Change tooling in 45 minutes or LESS with one wrench and no tape measure.

AVAILABLE: New 1” Flush Wall / Soffit Panel Profile for the SSQ Roof Panel Machine! This NEW flush wall profile will run up to 22 gauge steel, Hot Melt Sealant interface available for application and offers a reveal from 0” to 3” in 1/2” increments. Also offers a non-powered perforator option.

16 available Quick Change profiles available.

Polyurethane drive rollers

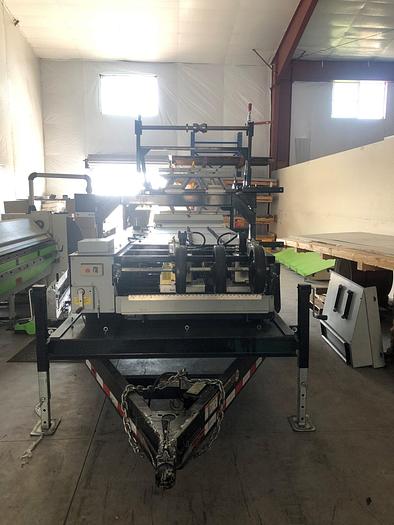

Trailer available (trailer in picture not included)

Hardened stainless steel forming roller system with shear dies

Hydraulic drive and shear

Push Button RUN/JOG controls at entry and exit ends

UL 90 rated panels

One pair of bead, pencil, striation or v-rib rollers

Welded tubular steel frame

Panel recognition safety photo eye

Length control limit switch

Power interruption safety circuit

Quick Change™ Profile Roller System

Quick Change Power Pac (choice of Gas or Electric)

Field formed panels have demonstrated compliance with UL580, Class 90 when a UL certificate accompanies the machine producing panel

SSQ Panel Machine
Length           13’7”
Width              5’
Height            4’3” w/ over head rack
1’10” w/o over head rack
Weight           2,200 lbs

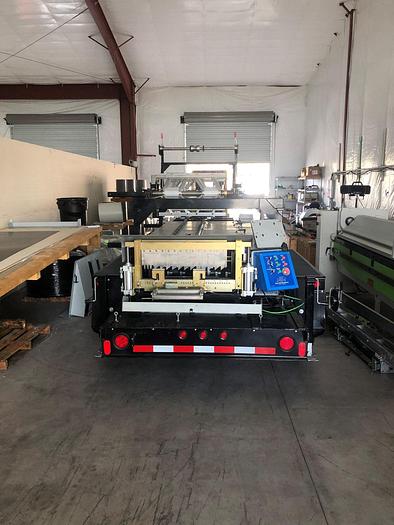

SSQ on Trailer (Available)
Length           17’6”
Width              7’
Height            6’3” with reel
Weight           4,800 lbs

Speed
75’/min. approx.

Drive
Hydraulically driven polyurethane rollers

Shear
Hydraulically powered, infinitely adjustable, hardened tool steel blades and dies, panel recognition safety photo eye

Coil Width
15” to 30” (30” coil requires remote decoiler or expandable reel)

Materials Formed
Steel 30 ga. to 22 ga. (painted, galvanized, aluminized)
Aluminum .019” to .040”
Copper 16 oz. to 20 oz. 3/4 Hard
Terne Coat Stainless 26 ga.

OPTIONS:

EZE CHANGE ROLLER SYSTEMS (All roller systems include shear dies)

FFQ100 1” Fastener panel

FWQ100 100 Roller system flush wall system

INCLUDED ACCESSORIES:

PR3-B Pererator assembly long frame – available

# TR12 – NATM compliant 12,000 lb capacity Tandem Axle Trailer with 4 independent jack stands, crane lifting eyes, electric brake & breakaway kit

# DR1 – Dual overhead bolt-on reel stand, machine mount

#DR01-EX – Expandable Arbor 16” or 20” ID each X2

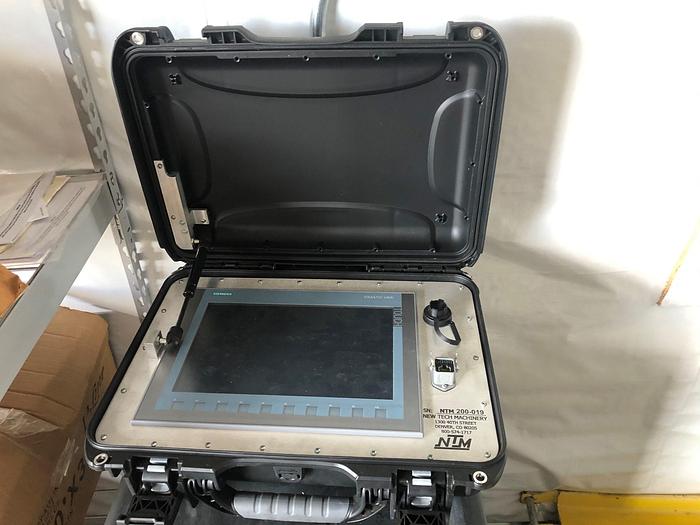

#DRC01 – New Tech Controller

Bead rollers – per set*

#PCPP-G – Quick Change Power Pack – gas engine

* 1 set of rollers = 1 upper & 1 lower roller assembly
