Description

DESCRIPTION & FEATURES:

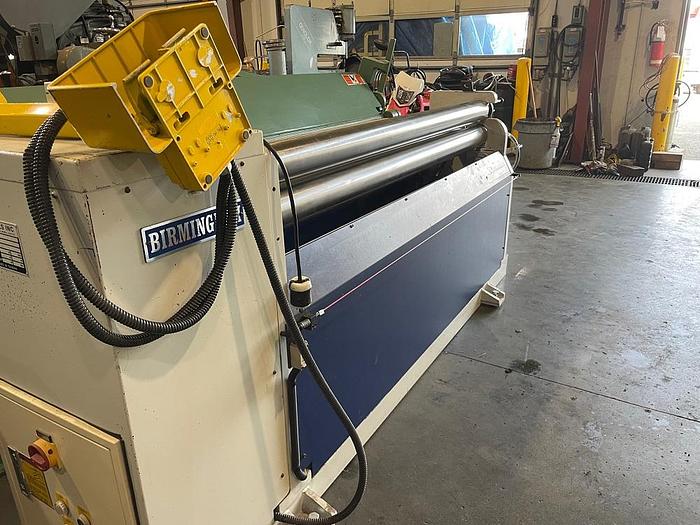

BIRMINGHAM R-0625H Initial Pinch Plate Roll – Hydraulic Driven

  • All Three Rolls Are Driven By Hydraulic System
  • Pinch Roll Is Hydraulic Powered Up/Down With Digital Counter For Showing Pinch Roll Position
  • All Rolls Are Made Of Top-Grade Alloy Steel Hardened Up To HRC55
  • Rigid Construction For Precise And Smooth Operation And Long Life Time Usage
  • The Top Roll Can Be Swiveled Out For Easy Removal Of The Finished Workpiece
  • Removable Foot Control Pedal For Forward/Reverse – Fitted With A Protective Housing
  • 220V 3PH 60Hz, 2HP
    • Show All

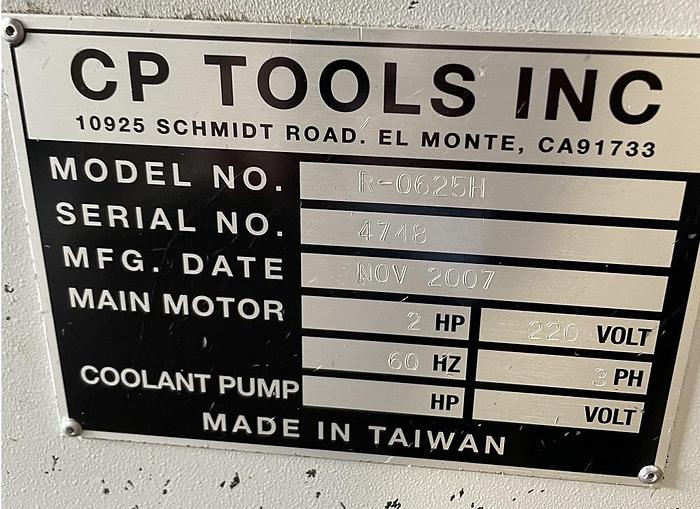

    Specifications

    ConditionUsed
    S/n4748
    Capacity6′ 8″ x 12 Gauge Mild Steel
    Roll diameter4-3/4″
    Net weight5500 Lbs
    Mgf dateNov 2007
