DURMA AD-R 2060 CNC Hydraulic Press Brake

DURMA AD-R 2060 CNC Hydraulic Press Brake

or
Call (604) 472-1444

Description

FEATURES:

  • Largest Volume Press Brake Producer
  • Welded steel frame incorporates rigid stress relieved frames
  • Y1, Y2, and X axis
  • Durma CNC Advantage 2D Graphic Control unit
  • Excellent bending quality with X and Y motor drivers
  • 650 mm length back gauge moving on ball-screwed shafts.
  • European tool holders
  • Hardened and ground tooling

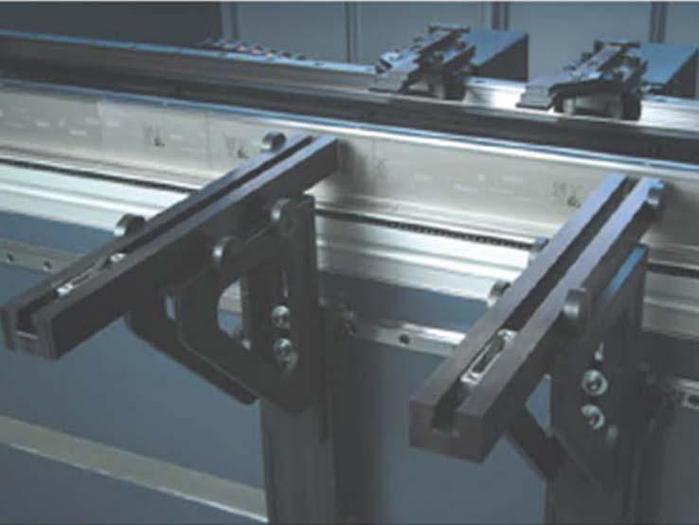

  • Front sliding support arms with T-slots and Tilting Stop
  • Foot Pedal Controller
  • Durma CNC Advantage 2D Graphic control unit
  • Manual
  • Motorized Backgauge with 430 mm/17 Travel
  • Manual Crowning
  • Back Gauge
  • Linear guide ball bearing system
  • Back Gauge Fingers
  • Height Adjustable
  • World Class Hydraulics, Blocks, Valves and Electronics
  • One (1) Segmented 6″ Gooseneck
  • One (1) 16 4 way lower die (50mm, 35mm, 22mm, 16mm)
  • Bottom Tool Holder
  • Euro Clamping
    • Show All

    Specifications

    ManufacturerDurma
    ConditionNew
    Bending power66 Ton
    Bending length2050mm / 80
    Distance between centers1700 mm / 67
    Backgauge travel430 mm / 17
    Backgauge finger blocks2
    Number of sheet support arms2
    Oil capacity100 Lt.
    Motor power11 Kw/ 15HP / 220V / 3 Ph / 60 Hz
    Stroke265 mm / 14
    Daylight530 mm / 20.8
    Throat depth410 mm / 16
    Bed height900 mm / 35-1/4
    Bed width104 mm / 4
    Length3300 mm / 129
    Height2750 mm / 108
    Width1650mm / 65
    Weight6100 kg / 13,400 lb.
