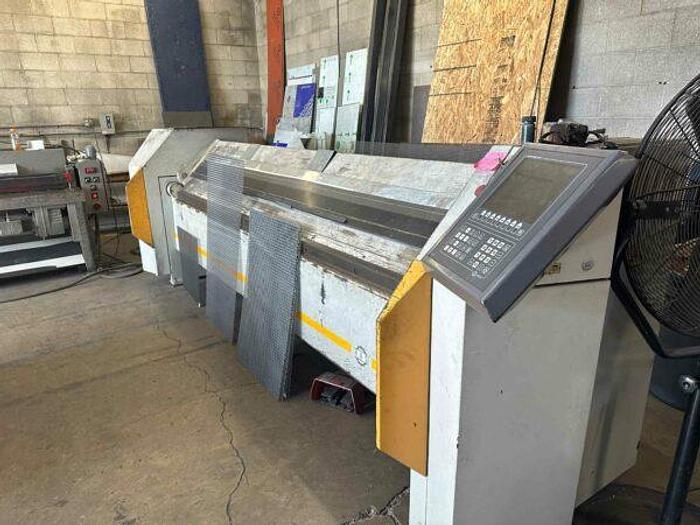

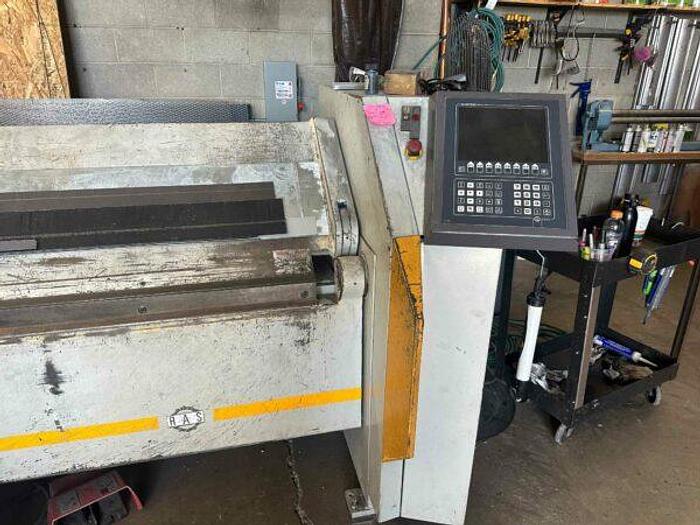

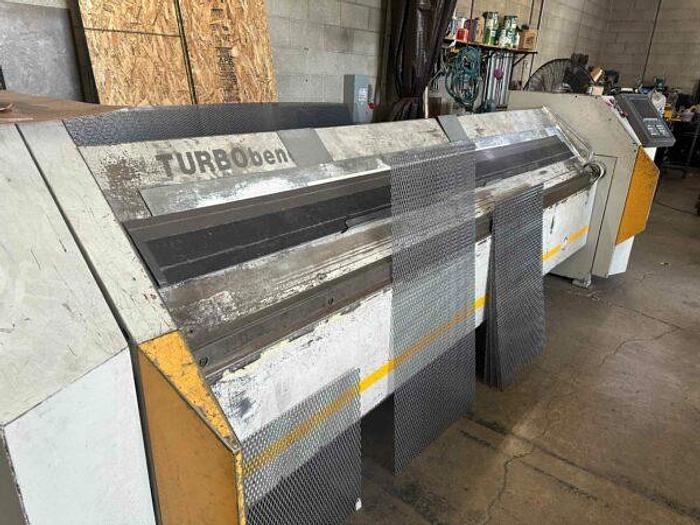

16 Gauge x 10′ RAS Turbobend CNC Folding Machine, 2002
16 Gauge x 10′ RAS Turbobend CNC Folding Machine, 2002
orCall (604) 472-1444
Description
Machine Type: Folding Machines
Make: RAS
Model: 61.31
Year: 2002
Capacity: ‘
Machine Location: Utah
Stock #: 480801
Equipped With:

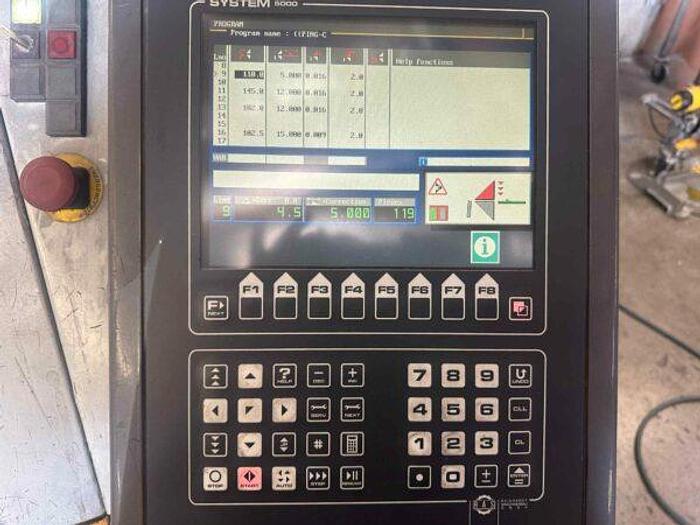

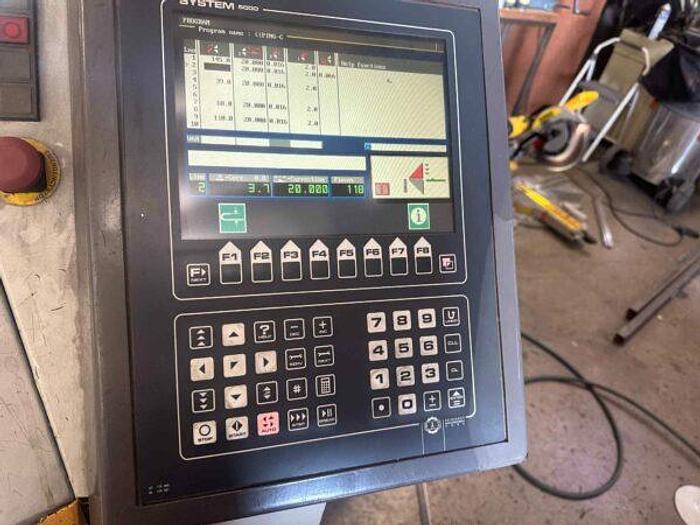

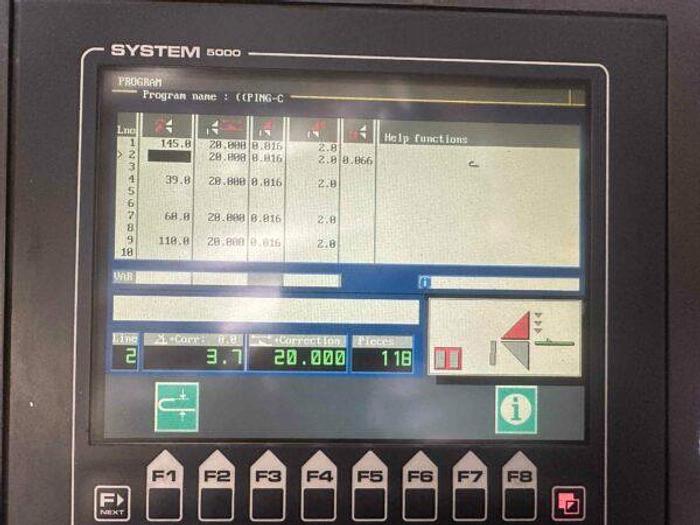

RAS CNC SYSTEM 5000 for Backgauge, Folding Beam, Upper Beam, and Virtual CNC Axis for the Folding Beam Adjustment, All Welded Steel Construction, Electric Foot Pedal
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Specifications
| Manufacturer | RAS |
| Model | 61.31 |
| Year | 2002 |
| Condition | Used |
| Stock Number | 480801 |
| Capacity | ‘ |
| Machine location | Utah |
| Working width | 124″ |
| Maximum sheet thickness | 16 Ga |
| Minimum inner bend radius | 1.5 x Thickness |
| Minimum flange height inside | 6 x Thickness |
| Maximum upstroke | 4.72″ |
| Maximum flooding beam adjustment | .19″ |

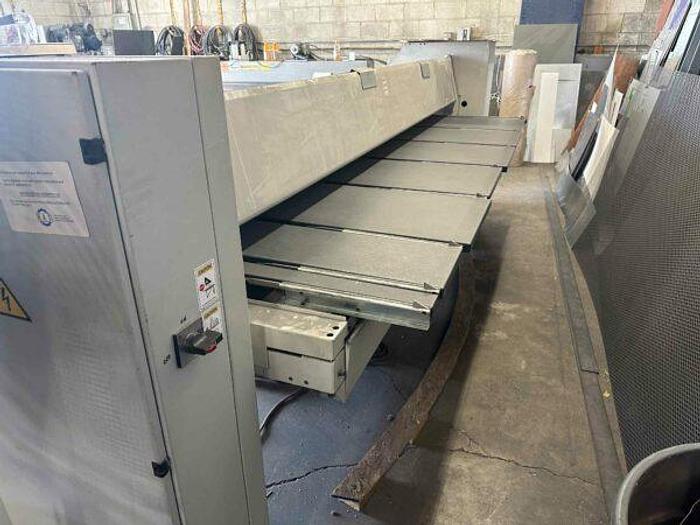

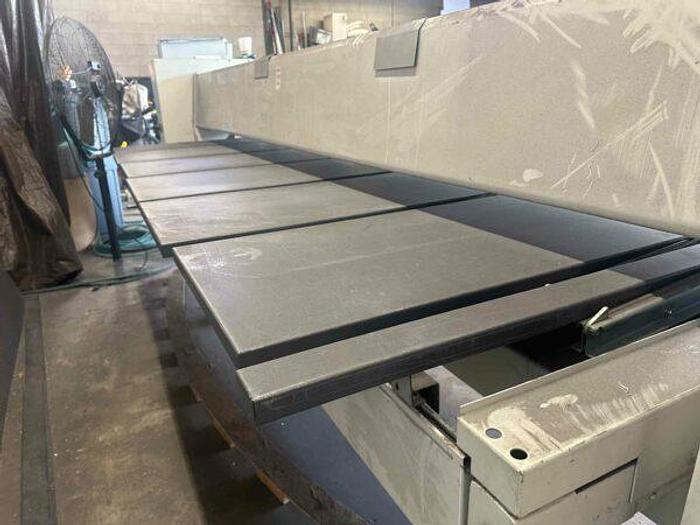

| Backgauge depth | .31″-39.4″ |
| Working height | 33″ |
| Downstroke speed | 2.5″/ Second |
| Maximum folding beam speed | 80 Degrees/ Second |
| Backgauge speed (.31″ – 30.4″) | 1.9 Seconds |
| Electrical | 220/3/60 |
